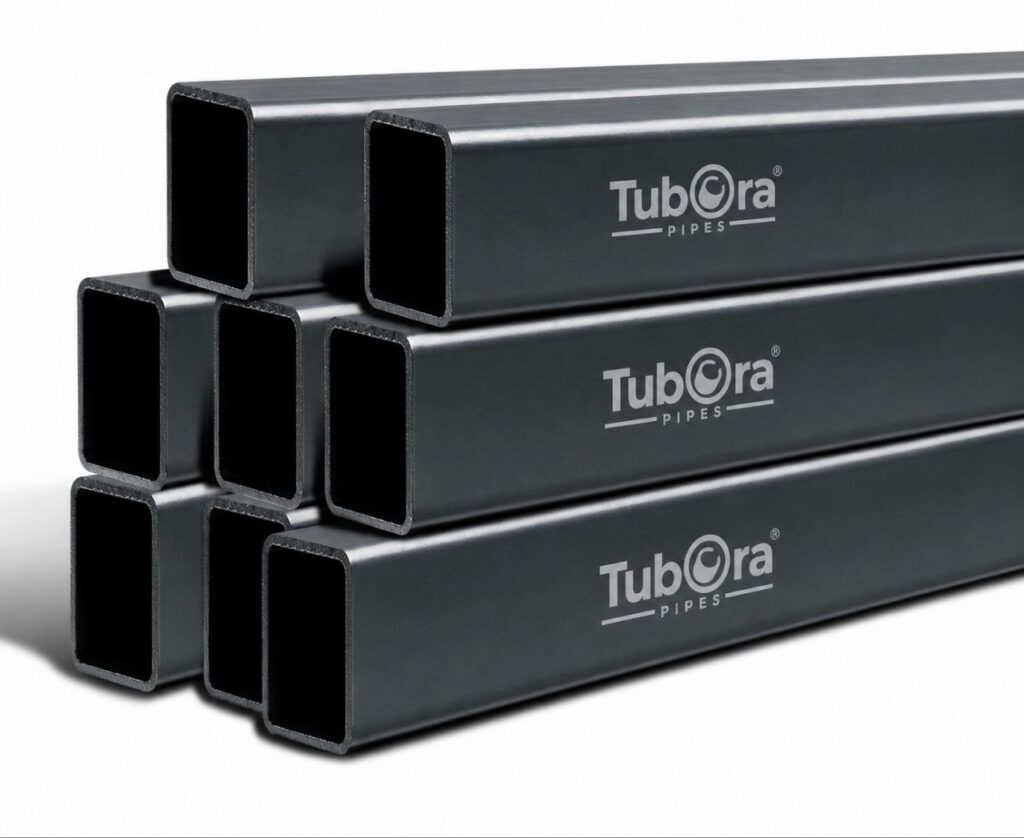

Square Hollow Sections (SHS)
Manufactured using premium HR steel coils and advanced High Frequency Induction Welding Technology for superior strength and durability.
Product Overview
Our Square Hollow Sections are ERW square steel pipes and tubes manufactured using premium HR steel coils and advanced High Frequency Induction Welding Technology for superior strength and durability.
Tubora also manufactures Circular Hollow Sections (CHS) and Rectangular Hollow Sections (RHS) on the same ERW line. Every section follows the same controlled manufacturing process and the same quality and testing standards, and is supplied for construction, infrastructure, solar and industrial applications.
Interested in this product?
Get specifications, pricing, or connect with our team.
Specification
Size Range
25×25 mm – 180×180 mm
Yield Strength
210 MPa to 800 MPa
standard
IS:4923
Thickness
1.6 mm – 8 mm
General Applications
Automobile
Infrastructure
Power
Warehouse
SHS Size & Weight Chart (IS:4923)
Here is the full Tubora square hollow section range, from 25 × 25 mm to 180 × 180 mm, with the theoretical weight per metre for each wall thickness. Shaded cells are in regular production. Grey cells can be rolled against an order. Fabricators use this chart to work out tonnage per job, pick the lightest section that does the work, and plan cutting lists. For weight per 6 m length, pieces per tonne and a size calculator, see our MS square pipe weight chart.
| Size (mm) | 1.6 mm | 2.0 mm | 2.8 mm | 3.0 mm | 3.5 mm | 4.0 mm | 5.0 mm | 6.0 mm | 7.0 mm | 8.0 mm |
|---|---|---|---|---|---|---|---|---|---|---|
| 25 × 25 | 1.12 | 1.36 | 1.79 | 1.89 | 2.12 | 2.31 | 2.63 | 2.85 | – | – |
| 40 × 40 | 1.88 | 2.31 | 3.11 | 3.30 | 3.76 | 4.20 | 4.99 | 5.68 | – | – |
| 45 × 45 | 2.13 | 2.62 | 3.55 | 3.77 | 4.31 | 4.83 | 5.77 | 6.62 | – | – |
| 50 × 50 | 2.38 | 2.93 | 3.99 | 4.25 | 4.86 | 5.45 | 6.56 | 7.56 | – | – |
| 60 × 60 | 2.88 | 3.56 | 4.87 | 5.19 | 5.96 | 6.71 | 8.13 | 9.45 | – | – |
| 70 × 70 | 3.38 | 4.19 | 5.75 | 6.13 | 7.06 | 7.97 | 9.70 | 11.33 | – | – |
| 75 × 75 | 3.64 | 4.50 | 6.19 | 6.60 | 7.61 | 8.59 | 10.48 | 12.27 | – | – |
| 80 × 80 | 3.89 | 4.82 | 6.63 | 7.07 | 8.16 | 9.22 | 11.27 | 13.21 | – | – |
| 90 × 90 | – | – | – | 8.01 | 9.26 | 10.48 | 12.84 | 15.10 | 16.92 | 18.87 |
| 100 × 100 | – | – | – | 8.96 | 10.36 | 11.73 | 14.41 | 16.98 | 19.12 | 21.39 |
| 110 × 110 | – | – | – | 9.90 | 11.46 | 12.99 | 15.98 | 18.87 | 21.32 | 23.90 |
| 120 × 120 | – | – | – | 10.84 | 12.56 | 14.25 | 17.55 | 20.75 | 23.52 | 26.41 |
| 125 × 125 | – | – | – | 11.31 | 13.11 | 14.87 | 18.33 | 21.69 | 24.62 | 27.67 |
| 140 × 140 | – | – | – | 12.72 | 14.75 | 16.76 | 20.69 | 24.52 | 27.91 | 31.43 |
| 150 × 150 | – | – | – | 13.67 | 15.85 | 18.01 | 22.26 | 26.40 | 30.11 | 33.95 |
| 160 × 160 | – | – | – | 14.61 | 16.95 | 19.27 | 23.83 | 28.29 | 32.31 | 36.46 |
| 180 × 180 | – | – | – | – | – | 21.78 | 26.97 | 32.05 | 36.70 | 41.48 |
Weights are theoretical, calculated from the IS:4923 sectional area (outer corner radius 2t, or 2.5t above 6 mm) at 7.85 g/cm³. Multiply by 6 for a standard 6 m length. Manufacturing tolerance: thickness ±7.5%, weight on individual length +10% / −8%, outside dimensions ±1% (min ±0.5 mm), corner radii 3t max, squareness 90° ±2°. Thicknesses other than those shown can be supplied on request.
Technical Specifications
| Product | ERW Square Hollow Section (SHS) / square steel tube |
|---|---|
| Standard | IS:4923, hollow steel sections for structural use |
| Size range | 25 × 25 mm to 180 × 180 mm |
| Wall thickness | 1.6 mm to 8 mm |
| Yield strength | 210 MPa to 800 MPa, depending on grade |
| Length | 6 m standard; custom lengths on request |
| Raw material | Premium HR steel coils |
| Process | High Frequency Induction (HFI) ERW welding, bead trimming, square sizing and automatic cutting |
| Testing | Hydro testing, eddy current testing, spectrometer chemical analysis, mechanical testing and dimensional checks |
| Certification | BIS / ISI certified |
| Plant | Banari, Janjgir-Champa, Chhattisgarh |
A square hollow section gives you equal strength on both axes and four flat faces. That means clean, square welded joints, easy bolting of cleats and plates, and a neat finish that takes cladding, sheeting and paint well. Tubora SHS is formed from HR coil, welded by high frequency induction and sized square with tight corners to IS:4923.
Where Tubora SHS Is Used
- Structural frames: columns, posts, trusses, portal frames, mezzanine floors and pre-engineered buildings.
- Construction and architecture: gates, grills, railings, balcony frames, canopies, pergolas and facade support.
- Infrastructure: stadiums, airport terminals, bus stops, parking structures and signage frames.
- Solar and energy: solar mounting structures and wind energy support frames.
- Industrial: warehouse and factory structures, storage racks, machine bases and conveyor frames.
- Transport: bus body and trailer frames.
- Furniture and fabrication: furniture frames, display units and general fabrication.
How We Make SHS
All Tubora sections run through the same controlled ERW line at our Janjgir-Champa plant:
- Raw material inspection of every HR coil
- Coil slitting to the exact strip width
- Roll forming into a round tube, then sized into a square profile
- High frequency induction welding
- Inside and outside bead trimming
- Cooling and sizing to final dimensions
- Automatic cutting to length
- Hydro testing
- Quality inspection: dimensions, weld, finish and straightness
- Bundling and dispatch
SHS, RHS or CHS: Which Section Do You Need?
Choose SHS for columns and frames that see similar load on both axes, and wherever flat faces make fabrication faster. For beams, purlins and rafters that bend mainly in one direction, Rectangular Hollow Sections (RHS) give more strength per kg. For poles, scaffolding and members in torsion, go with Circular Hollow Sections (CHS). See all three in our product range.
Ordering Tubora SHS
Send us the size, wall thickness, length and quantity you need, and our sales team will confirm availability, lead time and price. Dealers and project buyers across India are supplied through our distribution network. Download the Tubora product catalogue (PDF) or send an enquiry for a SHS quote.
